Flora Xtra2512 4'x8' 4 Konica 1024A Head

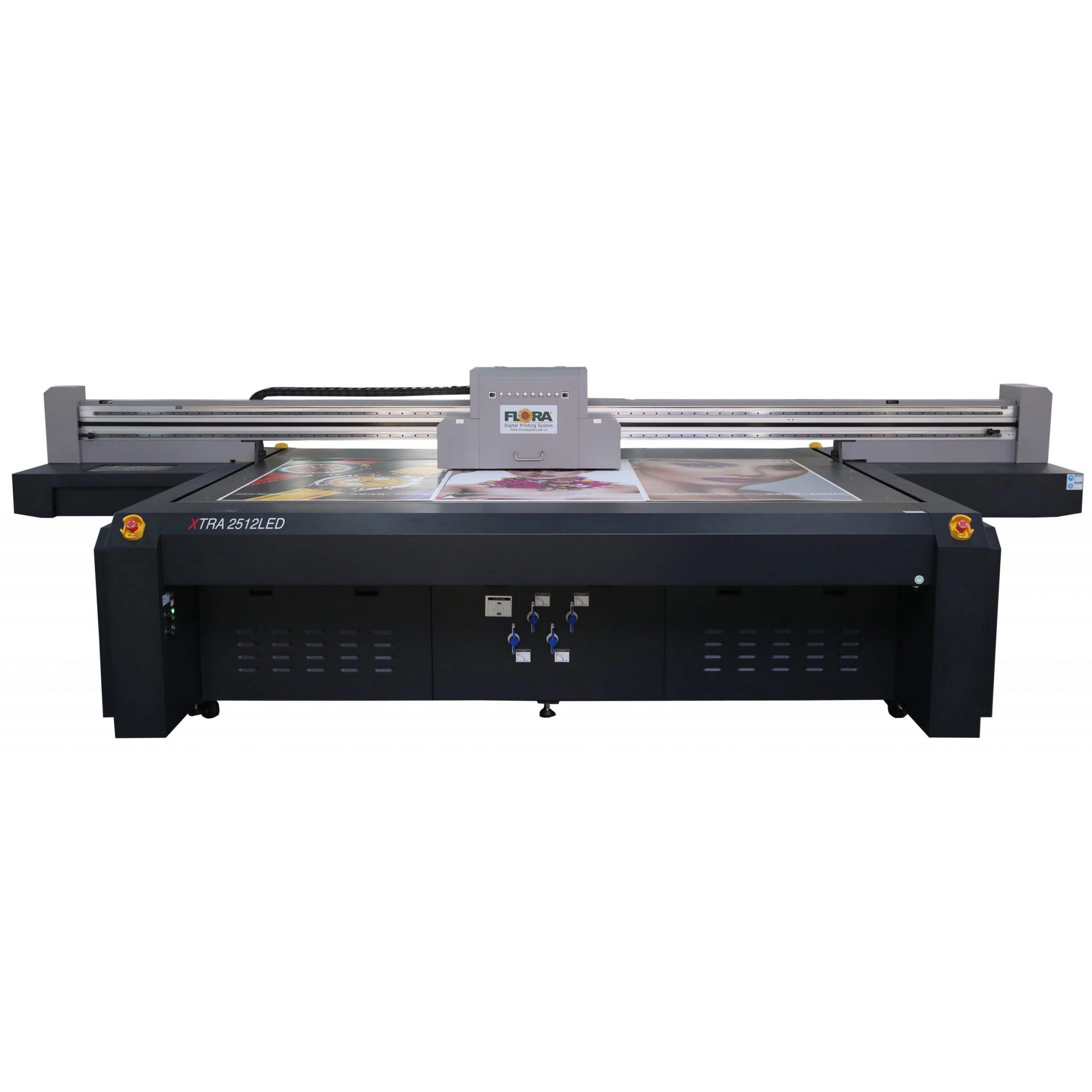

    Flora Xtra2512LED 4'x8' Flatbed UV LED Printer

Description

    Flora Xtra2512LED 4'x8' Flatbed UV LED Printer?

    • Konica 1024a Grayscale print heads, variable drop size from 6pl to 18pl

    • 4~18 print heads (4 Color, 5 Color, 6 Color Options)

    • (C+M+Y+K) or (C+M+Y+K+W) or (C+M+Y+K+V) or (C+M+Y+K+W+V)

    • Able to Print full bleed on 4’x8' boards.

    • Prints up to 3.9 Inches thick.

    • Auto Height adjust system, Independent ink purging system

    • 4 Zone Vacuum table with alignment pins

    1.Variable Color Configuration + Grayscale Print mode
    Variable configuration to satisfy different customers for high speed, high resolution, as well as white application needs. True grayscale printing, drop size from 6pl to 18pl, which makes both solid color and smooth color gradation possible.

    2.Anti-crash Sensor – Resume print after emergency -stop. The anti-crash sensor can detect issues with the media beforehand and protect the print heads from damage. After that, you can resume printer, which will help you save media.

    3. Automatic Height Adjust System – This function automatically adjusts the height of the carriage up to 3.9” thick , setting the carriage to the proper height and reducing the risk of head strikes.

    4. Automatic Pin Registration System – Our Automatic Pin Registration system aids in easy edge to edge printing, which helps simplify media location which ensures high quality precision output.

    5. 4-Zone Vacuum Table – With 4 vacuum zones you can easily adjust the table to hold down all sizes of boards. The vacuum provides superior suction to hold material in place. Also available is a “blow” back option to turn the table into an “air hockey” table for easy media placement.

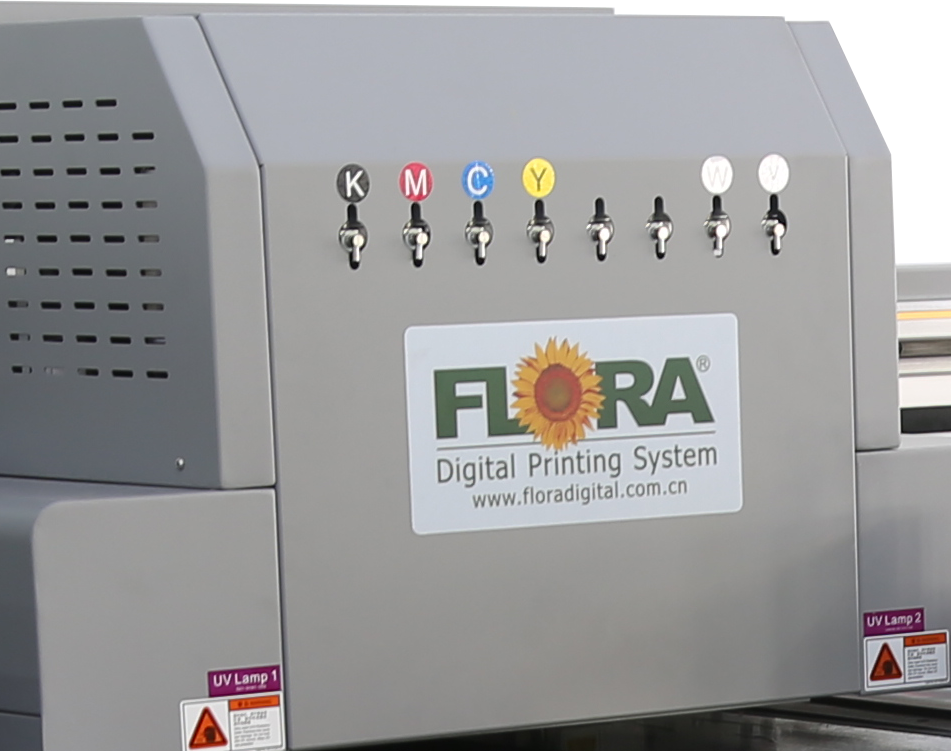

    6. Dual Negative Pressure System – Independent negative pressure system used for CMYK and White can effectively guarantee the continuity of print for all the colors.

    7.Dedicated White Ink – XTRA2512LED offers up to eight layers of printing. Enabling Color > White, White > Color, Color > White > Color and more. White controls are easy to use and understand. White can be setup anywhere from a spot color to a full flood of the image area.
