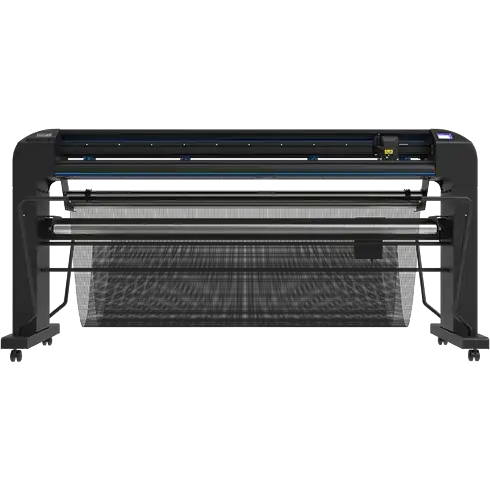

Summa Drag Knife Cutter Series
You Must be Logged in to Add the Item to your Cart.
Description
- Efficient drag knife technology
- High-volume cutting
- Power and precision
- Perform day in and out
- OPOS X - OPOS Xtra
- Barcode job recognition
- Up to 2 x 64 marks on the X-line
- Y-Line compensation
- 40 ft max. within guaranteed specifications for media less than 30 in wide*
- 13 ft max. within guaranteed specifications for media larger than 30 in wide*
- Summa GoSign Software
- Summa Cutter Control
- Summa Plug-in: for Illustrator, CorelDraw, MacSign
CUTTING EXCELLENCE THROUGH AN EFFICIENT AND PRODUCTIVE WORKFLOW
S Class 3 roll cutters feature first-class engineering and advanced cutting technology. The new S Class 3 series is crafted to cater to the needs of true professionals who demand nothing short of top-notch performance, pinpoint precision, and unparalleled versatility in their work. With its advanced technology, intuitive software GoSign, durable construction, and time-saving features, they surpass even the most demanding user expectations.
Smart object sorting and paneling
The Smart Object Sorting feature is designed to select the most optimal starting point for cutting objects, every single time. In addition, the unique Smart Paneling function improves cutting accuracy and simplifies post-processing. When paneling is, e.g., set to 18in, all objects within this range are cut at once.
OPOS alignment for smart production
The Optical Positioning System is an automated contour alignment system. The OPOS X sensor technology senses 4 to 128 marks on a wide range of materials.
Larger media roll
The media roll on the cutter can now handle a diameter of 7.8in and supports a roll weight of at least 100 lbs. This improvement is highly beneficial for print and cut applications, including laminated vinyl.
D SERIES - DRAG CUTTING HEAD
Summa S Class 3 D Series roll cutters are specifically designed for high-volume cutting environments. They unite legendary S Class power and precision with an efficient and affordable drag knife cutting head. Boasting an astonishing array of industry-first innovations and built-in capabilities, the S3 D Series is a do-it-all dynamo with the resilience to perform day in and day out.
Model
S3 D75
S3 D120
S3 D140
S3 D160
Dimensions
44.1 x
27.7 x
43.8 in
73.6 x
27.7 x
43.8 in
79.6 x
27.7 x
43.8 in
88.6 x
27.7 x
43.8 in
Media Width
2.4 to 33.0 in
4.5 to 51.1 in
6.7 to 57.0 in
6.7 to 66.1 in
Max. Working Width
29.2 in x 164 ft
47.2 in x 164 ft
53.1 in x 164 ft
62.2 in x 164 ft
Oversized Mode*
‘Oversized’ mode allows a wider cutting area : +/- 2.8 in*
Media Thickness
0.002 in to 0.01 in / Up to 0.03 in with sandblast drag knife
Pinch Rollers
2
3
4
4
Alignment Type
Tracking Performance
Within +/- 0.004 in on plots:
Accuracy
0.2% of move or 0.010 in, whichever is greater
Speed
Up to 56 ips diagonal
Acceleration
Up to 4.25 G diagonal
Knife Pressure
Drag Knife: Up to 400 grams
Other Features
FlexCut (cutting through)
Connectivity
Ethernet, USB, WIFI
Power Requirements
100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
Included Software
Cutting Technology
Drag Knife
*In ‘Oversized’ mode the tracking performance is no longer guaranteed.
