SUMMA F1612-43 Flatbed 63"x47" Cutting System
Now with 220 V Single Phase
SUMMA F1612-43 Flatbed Cutting System Packed cutting table; work area 63x47" Includes: Vacuum Pack: Pump 1.75kW, sound absorber, switching valve conveyor system with 3 Pneumatic Media Clamps, and Roll-support Integrated Safety System Camera System Drag Module ADC Right & Left GoProduce STANDARD POWER REQUIREMENTS: Single Phase 208V + N / 60Hz
Summa F1612
63" x 47"
Cutting System
Multifunctional cutting head for cutting efficiency
The multifunctional head can hold up to three modules at one time. The central unit houses a positioning laser and an integrated camera system for fast and accurate contour-cutting mark recognition.
Tangential Module for power and precision
Offering a vertical force of 10 kg and corresponding to a wide range of matching tools. Each tool has a barcode identifier, ensuring automatic recognition and parameter settings.
Advanced Safety System
The advanced Safety System, delivered with all F Series models, guarantees a safe work environment and is compliant to worldwide health and safety requirements. Thanks to the placement of the system on the top beam, the F Series can be accessed easily, which results in higher production efficiency.
GoProduce software to perfectly match your F Series
The software GoProduce is developed to handle jobs easy and efficiently. The modern interface with improved navigation enables users to find and operate functions as quickly and intuitively as possible.
Barcode for Automated workflows
The barcode automatically identifies the job to obtain the necessary cutting data from the computer. The built-in camera scans the job automatically or by a hand scanner, depending on the selected workflow.
Automatic Depth Control (ADC)
The ADC automatically sets the knife depth and the orientation of the tool. The tip of the knife or bit is measured accurately and the down position of the tool is set to table's level, guaranteeing a flawless cut. Both the ADC left and ADC right is included with every new F Series flatbed cutter.
Accelerated workflow with F-Performance
Increase the performance of your F Series flatbed system with almost 40%. Advantages include faster up, down and turning movements of the cutting head, which will be most remarkable when using the Kiss-cutting tool.
Specifications
MODELS:
F1612
F1432
F1832
F3220
F3232
CUTTING AREA
63 in. (160 cm) wide x 47 in. (120 cm) long; up to 164 ft. (50 m) long in multi-panel
53 in. (136 cm) wide x 126 in. (320 cm) long; up to 164 ft. (50 m) long in multi-panel
72 in. (184 cm) wide x 126 in. (320 cm) long; up to 164 ft. (50 m) long in multi-panel
128.7 in. (327 cm) wide x 82.6 in. (210 cm) long; up to 164 ft. (50 m) long in multi-panel
128.7 in. (327 cm) wide x 130.7 in. (320 cm) long; up to 164 ft. (50 m) long in multi-panel
MEDIA WIDTH
Up to 64 in. (165 cm)
Up to 56 in.(142 cm)
Up to 74 in. (190 cm)
Up to 130 in. (332 cm)
Up to 130 in. (332 cm)
MULTI PANEL*
1968 in. (5000 cm) *Media clamps and roll-feed and/or conveyor belt system are required
REPEATABILITY
Within ± 0.05 mm on plots
ACCURACY
0.05 % of move or 0.05 mm, whichever is greater
ACCELERATION
Up to 1 G
SPEED
Up to 39 in./sec (1000 mm/sec)
CLEARANCE*
1.9 in. (5 cm)
*Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting mat or conveyor belt
MAXIMUM ALLOWED FORCES
Vertical: 200 Newton, Horizontal: 200 Newton
MAXIMUM TABLE LOAD
10 lb/ft2 (50 kg/m²)
CONNECTIVITY
USB
POWER REQUIRMENTS
Single phase 208v + N + G
3 phase 208v + N + G
3 phase 208v + N + G
3 phase 208v + N + G
3 phase 208v + N + G
DIMENSIONS
97 x 86 x 43 in.
(247 x 220 x 110 cm)
91 x 166 x 48 in.
(230 x 422 x 122 cm)
110 x 166 x 48 in.
(279 x 422 x 122 cm)
166 x 123 x 48 in.
(422 x 313 x 122 cm)
166 x 166 x 48 in.
(422 x 422 x 122 cm)
WEIGHT
1100 lbs (500 kg)
TBD
3375 lbs (1530 kg)
1760 kg (3883 lbs)
1974 kg (4347 lbs)
OPERATING TEMPERATURE
59° to 95°F (15° to 35°C)
STANDARD ACCESSORIES

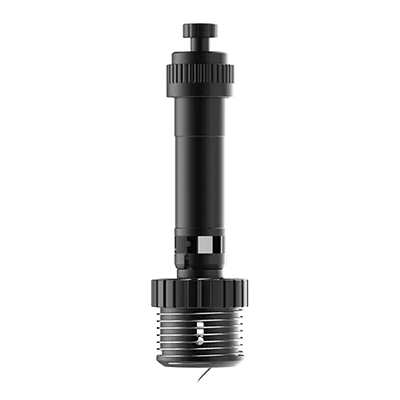

Drag Module, Conveyor System, Roll-Feed System, Safety System 2020, Pneumatic Pack, ADC left&right, standard 36° blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), Summa GoProduce software.
OPTIONAL ACCESSORIES
Tangential Module, F Series Routing System, HF Routing System, HT Rotary module, Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, V-Cut Tools, production software, basket (F1612), extension tables (F1612), wireless controller w/charger.
