SUMMA F1612: 63X47" GoProduce

  • Brand: Summa
  • Product Code: F1612-21

    Description

      F Series

      The most versatile flatbed cutting system ever

      Summa’s Professional Flatbed Finishing System is an award-winning solution for producing innovative signage, displays, samples, packaging applications, and more. With an ever increasing arsenal of tools and optional add-ons, this is the breakthrough cutting solution you’ve been dreaming about.

      F2630

      Features

      Industry-leading features and optional add-ons.

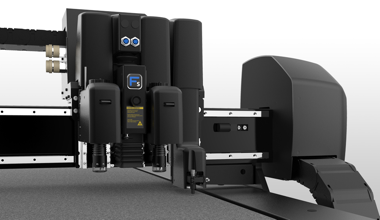

      Multifunctional Head

      The multifunctional head holds up to three modules at one time. The central unit houses a positioning laser and an integrated camera system for fast and accurate contour-cutting mark recognition.

      icon
      model

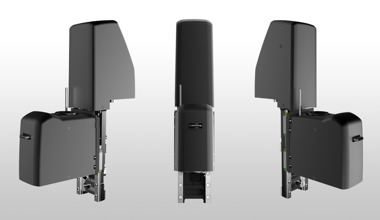

      Powerful Tangential Module

      Offers a vertical force of 10 kg and corresponds to a wide range of matching tools. Each tool has a barcode identifier that ensures automatic recognition and parameter settings.

      roller
      touchscreen

      Media Advance Clamps

      Pneumatically-driven media advance clamps hold the material down while pulling it forward in order to work continuously in panels or multiple jobs.

      cutting head

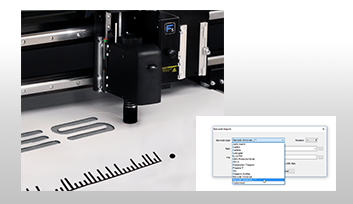

      Barcode

      The barcode workflow automatically identifies the job to obtain the necessary cutting data from the computer. Scanning the job happens automatically by the built-in camera of the Summa F Series system or by a hand scanner, depending on the selected workflow.

      Barcode
      photography

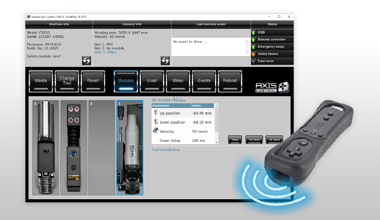

      Axis Control Software

      Axis Control software gives you full control over Summa's cutting table. The optimized design of the touch screen makes Axis Control the optimum interface for the machine operator. With the optional wireless controller, the operator is free to move around the table while changing basic settings.

      touchscreen

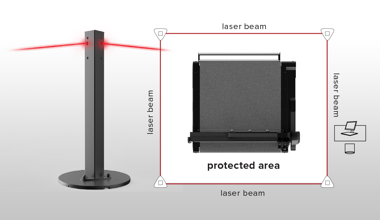

      Safety Pack

      The safety pack assures maximum security. A laser beam systems surrounds the table and controls the motion area. The unit can then work safely, using full speed while in production mode. When put into safety mode, the machine settings can be securely adjusted.

      ethernet

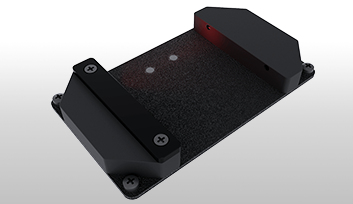

      ADC

      The Automated Depth Control (ADC) simplifies tool, knife or bit changes significantly. The ADC measures the tip of the knife or bit accurately and sets the down position of the tool to the level of the table. This ensures the best settings can always be used to get the most optimal cut quality.

      ADC

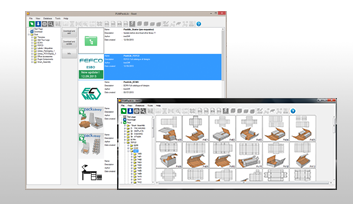

      PackLib

      The PLM PackLib for Summa is a library of resizable standard packaging models. The most popular packaging standards FEFCO (corrugated cardboard) and ECMA (folding carton) are included. Also a few POS display designs and solid cardboards (furniture) designs are available.

      PackLib

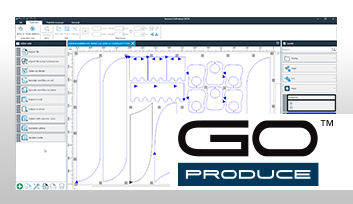

      Summa GoProduce

      The user-friendly software GoProduce is part of Summa's GoSuite platform and is developed for the F Series' operator to handle jobs in a most straightforward and easy way. The software includes an extended range of important functionalities and a modern interface with improved navigation, which will enable users to find and operate functions as quickly and intuitively as possible.

      Summa GoProduce

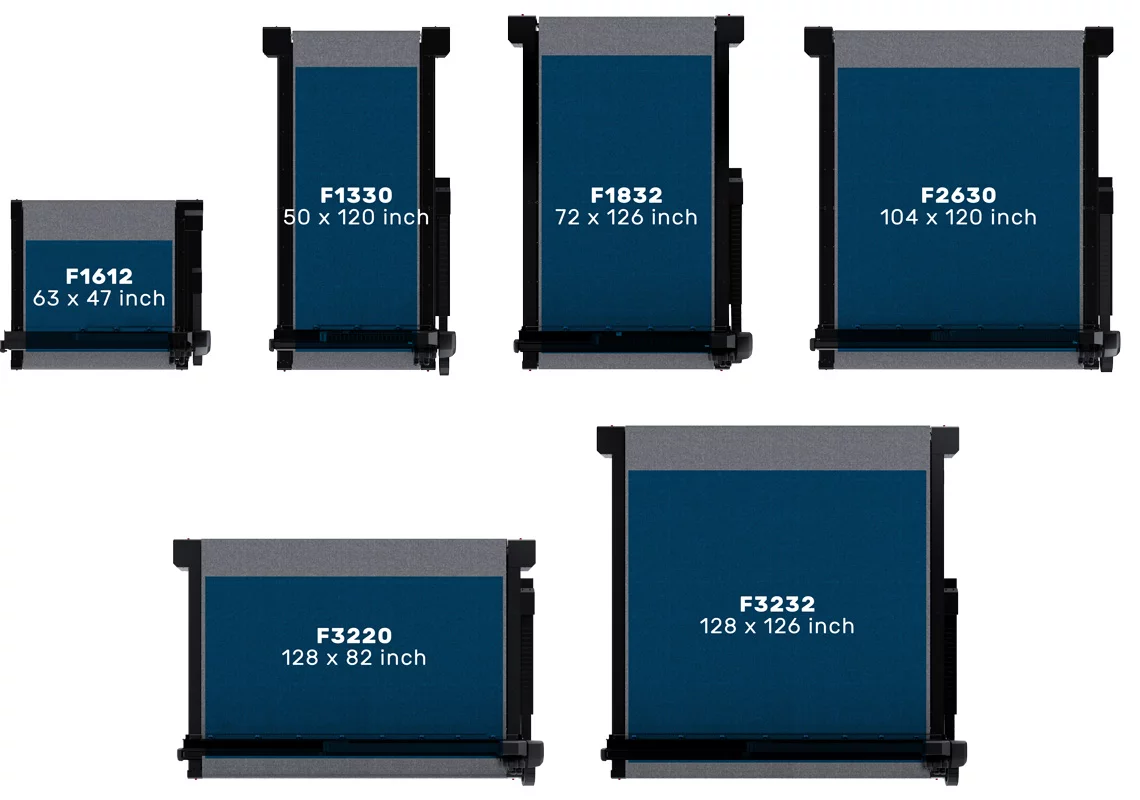

      Big, Bigger, Biggest

      Available in six sizes to dramatically increase productivity.

      Media Handling Has Never Been Easier

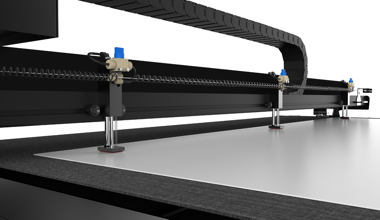

      Pneumatic Media Advance Clamps
      Pneumatically-driven media advance clamps hold the material down while pulling it forward in order to work continuously in panels or multiple jobs.

      Vacuum Pump and Selector
      The vacuum pump with sound absorber holds the material in place during the job while the selector adjusts the vacuum automatically to match the working area.

      Conveyor System & Roll Support System
      This conveyor system and media supply rollers allow the cutting and creasing of large lengths of flexible material to large production runs. The Roll Support System of the F2630 consists of two parts, so two smaller rolls can be loaded next to each other to maximize the workload of the machine. In combination with the Conveyor System and the media advanced clamps, the Roll Support System is ideal for processing roll material on all the Summa Flatbed Systems.
