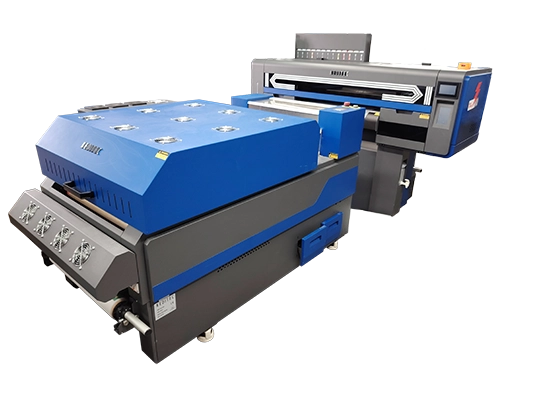

Keundo K Series
24" DTF Printer & Heater/Shaker Package
- C, M, Y, K + C, M, Y, K + White + Fluorescent Magenta, Fluorescent Yellow, Light Cyan, Light Magenta + Red, Blue, Green, Orange
- C, M, Y, K + C, M, Y, K + White + White + Red, Blue, Green, Orange
- C, M, Y, K + C, M, Y, K + White + White + Fluorescent Magenta, Fluorescent Yellow, Light Cyan, Light Magenta
- 1 KG of TPU powder
- One 24” roll of transfer film
- PhotoPrint RIP and MainTop Controller software
- Keundo 24” Heater Shaker – Model YXP6018Pro
Introducing the New Keundo K Series
SPECTRUMELITE DTF Printer Heater/Shaker Package!
Take your DTF production to the next level with the Keundo K Series SPECTRUMELITE—engineered for speed, precision, and exceptional color vibrancy. Available in 2, 3, 4, or 5 Epson i3200 printhead configurations, the SPECTRUMELITE delivers outstanding performance for high-volume, high-quality output.
This complete package includes:
Five i3200 Epson Print Heads, supporting the following ink configuration options:
Double the print speed of the 2 and 3 head printers. + Fluorescent Ink + + R,G,B,O
One complete set of your choosing.
Please not once an ink set is chosen it cannot be changed in the future without great expense
Scroll down for additional product specifications.
You Must be Logged in to Add the Item to your Cart.
Description
Keundo K Series
24" DTF Printer & Heater/Shaker Package
5 i3200 Print Heads
Printer Package Includes:
Keundo K5-60DTF-5 Printer
Equipped with five Epson i3200 print heads
One complete set of DTF ink of your choice
1 KG of TPU powder
One 24" roll of transfer film
PhotoPrint RIP and MainTop Controller software
One YXP6018Pro 24" Heater/Shaker.
Key Features That Set APS SPECTRUMELITE K Series DTF Apart
Nozzle-Out Compensation – Automatically detects and compensates for missing nozzles, ensuring flawless prints.
Upgraded Damper System
Dampers are now independently heated on all sides with a control switch, to maintain nozzle status, improve ink fluency, stable output
White Ink Stirring System – Keeps white ink in motion to prevent settling and clogging, ensuring uninterrupted printing.
THK Mute Guide – High-quality imported guide rail ensures low-noise, stable, and durable operation.
Automated Film Take Up System
Ensures higher step accuracy and
maximizes of print quality
Auto In-Line Moisturizing
The machine can be set to automatically spray moisturizing liquid, which can effectively slow down the drying speed
of the ink in the nozzle and prevent clogging.
Electric rewind system
To enhance printer rewind control, we've implemented a push-key rewind release system, streamlining machine operation and simplifying rewinding
Printer Specifications for APS SPECTRUMELITE K
Model
K5-60DTF-5
Print Head
Epson i3200 ( Five Print Heads
Printing Technology
Piezoelectric
Acceptable Media
Width
Thickness
24"
Maximum Thickness 39 mil (1 mm)
Printing Width
24"
Ink Cartridges
Type
Capacity
Colors
Transfer Pigment Ink
Continual Ink Supply 220 Ml
C,M,Y,K + White
Applicable Medium
Transfer Film
Color Management
ICC or Density Curve
Media Handling System
Powder & Color Fixing Machine
Interface
RJ-45/LAN
RIP Software
Main Top & Photoprint
Power Supply
50HZ/60HZ,220V/110V/10A
Environment
Temperature
Humidity
68 Degrees to 83 Degrees
65% to 75%
Printer Size
72" W X 31.5" D X 52" H
Packaging Dimensions
75" W X 37" D X 54" H
Weight
Printer Weight
Printer & Packaging Combined
440 Lbs
630 Lbs
Keundo YXP6018Pro 24" Heater/Shaker.
24" Heater/Shaker with built-in Air Filtration system .
Click on image below to be directed to Heater/Shaker for more product information.
