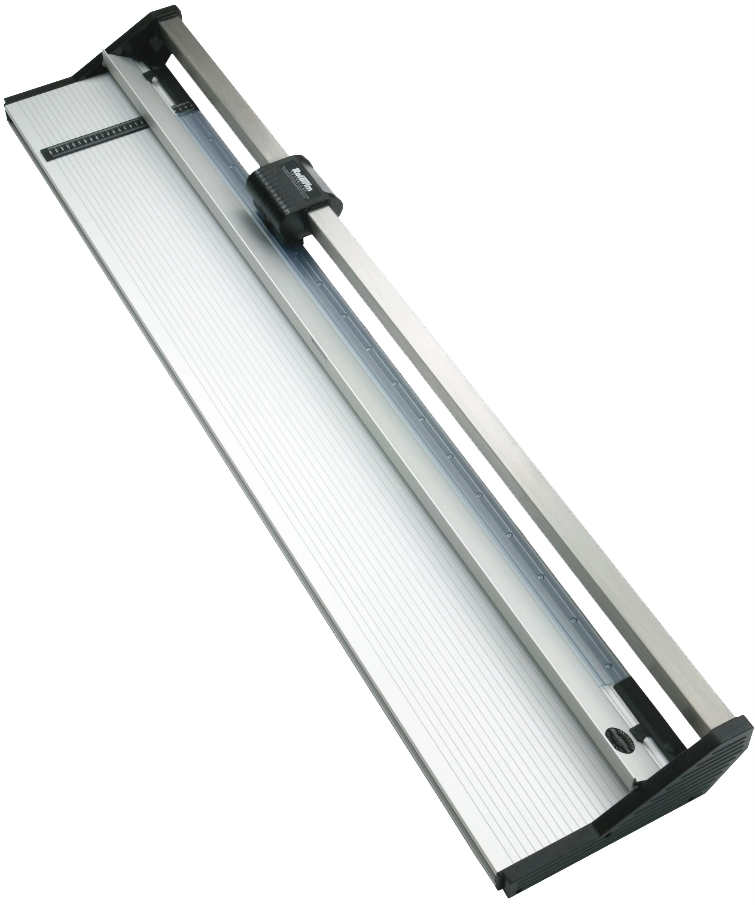

Rotatrim DigiTech+
- A heavy-duty "all day, everyday use" trimmer drawing from the design elements of the proven Professional, the DigiTech+ offers the same dynamic features, plus a very large format that cuts up to 100", depending on the unit chosen, they are available in sizes from 26" to 100" in width. . Using the same self-sharpening, hand-finished tungsten steel blades as the Professional, the DigiTech+, like all Rotatrim trimmers, is engineered for total cut precision. Match it with a Keencut Stand to get the maximum productivity.
You Must be Logged in to Add the Item to your Cart.
Description
List Price: $715.00 – $1,670.00
A heavy-duty “all day, everyday use” trimmer drawing from the design elements of the proven Professional, the DigiTech+ offers the same dynamic features, plus a very large format that cuts up to 100". Using the same self-sharpening, hand-finished tungsten steel blades as the Professional, the DigiTech+, like all Rotatrim trimmers, is engineered for total cut precision.
A strong 1 1/4" stainless steel guide rail provides cutting head stability.
A single roller mechanism results in lighter cutting action (maximum cut depth of 2mm).
Extruded aluminum baseboard, end frames and head – plus an aluminum square side rule – ensures extreme robustness.
An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.
Optional Stand & Waste Catcher Package
This convenient quality steel stand that supports the Rotatrim DigiTech+ Series trimmers offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off cuts.Helpful Hints
Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate. The overload protection system ensures that it is virtually impossible to overload the machine. But, if cutting appropriate material, this plate can be removed in order to offer bi-directional cutting.
Perfect for Cutting Up to 2mm:
Canvas
Cellophane
Cibachrome
Cork
Corrugated card
Digital prints
Encapsulations
Felt
Flexographic plates (.067")
Floor graphics
Heatseal
Inkjet paper
Laminations
Photo paper
Photo film
Polyester
Polystyrene
Posters
Reflective film
Self-adhesive film
Tissue paper
Transparencies
Veneers
Vinyl
Outstanding Features of the DigiTech+:
1 1/4" stainless steel guide rail provides cutting head stability.
Extruded aluminum baseboard, end frames and head – plus an aluminum square side rule.
Single roller mechanism results in lighter cutting action.
Maximum cut depth of up to 2mm.
Hand-Finished Flat Blades
Crafted to incredible tolerances to two-thousandths of an inch.
To ensure accuracy and performance, the blades have a bevel ground into the cutting edge at a very precise angle to offer up the perfect contact point for the rotary blade.
Self-Sharpening, Long-lasting, Rotary Blades
Ground to extremely tight tolerances twice and then deflashed to remove any edge burring.
An initial hollow grind places a concave profile to the inside of the blade and a chisel grind creates an angled bevel edge on the blade for precision and outstanding longevity.
Optional 36" rule extension
For improved accuracy and versatility. Fits all Rotatrim DigiTech+ sizes; model# 62326).
Optional Stand & Waste Catcher Package:
34"H Black finished Stand with an integrated, grey waste catcher.

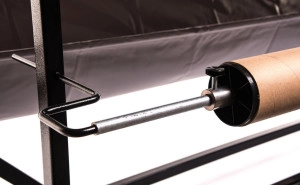

Optional Stand Mounted Roll Dispenser
The Roll Dispenser attaches to the stand and waste catcher. Adjustable arm rods and cones allow for variable thickness and length rolls.
Sizes available
Features:
Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate
ISO9001:2008 quality certified
5 year general warranty on all parts
100% made in England
Rotatrim DigiTech+ SIzes and Dimensions
60301 Cuts Length 26"; Overall Size 40"W x 13 1/2"D x 7"H
60311 Cuts Length 38"; Overall Size 52"W x 13 1/2"D x 7"H
60321 Cuts Length 49"; Overall Size 64"W x 13 1/2"D x 7"H
60331 Cuts Length 61"; Overall Size 75 1/2"W x 13 1/2"D x 7"H
60341 Cuts Length 73"; Overall Size 87 1/2"W x 13 1/2"D x 7"H
60361 Cuts Length 100"; Overall Size 113"W x 13 1/2"D x 7"H
Stand & Waste Catcher Package:
62810 Stand & Waste Catcher for 26" DigiTech+ (60301)
62812 Stand & Waste Catcher for 38" DigiTech+ (60311)
62814 Stand & Waste Catcher for 49" DigiTech+ (60321)
62816 Stand & Waste Catcher for 61" DigiTech+ (60331)
62818 Stand & Waste Catcher for 73" DigiTech+ (60341)
62819 Stand & Waste Catcher for 84.5" DigiTech+ (60351)
62822 Stand & Waste Catcher for 100" DigiTech+ (60361)
Roll Dispenser:
62830 Roll Dispenser for 26" DigiTech+ (60301)
62832 Roll Dispenser for 38" DigiTech+ (60311)
62833 Roll Dispenser for 49" DigiTech+ (60321)
62834 Roll Dispenser for 61" DigiTech+ (60331)
62835 Roll Dispenser for 73" DigiTech+ (60341)
62836 Roll Dispenser for 84.5" DigiTech+ (60351)
62837 Roll Dispenser for 100" DigiTech+ (60361)
Accessories and Cutting Wheels:
69105 Replacement Cutting Wheel for all DigiTech+ trimmers
62326 36" Rule Extension Kit- Fits all DigiTech+ trimmers
