Keundo 23.62"x35.43" 3 Epson i1600 heads

  • Brand: Keundo
  • Product Code: Q6090UV

    Keundo Q6090UV 23.62 x 35.4" UV Flatbed

    • Four Color Process  Plus White and Varnish
    • Media Thickness 7” Z Axis
    • Epson I1600 Print heads
    • Optional rotational cylinder attachment
    • Print Size 600mm x 900 mm
    • Dual UV Lamps

    By using 4 Colors + White & Varnish you achieve more expressive prints



    The printer is equipped with 6 ink tanks, C,M,Y,K + White + Varnish. As a result it can finish exquisite shading with high precision and enables you to achieve rich expressive prints .

    Printer is designed for customization

    The optional rotary feature allows 360 ° printing on cylindrical objects up to 7" (180mm)  height.

You Must be Logged in to Add the Item to your Cart.

Click Here to Login

Click Here to Register for a new Account

Description

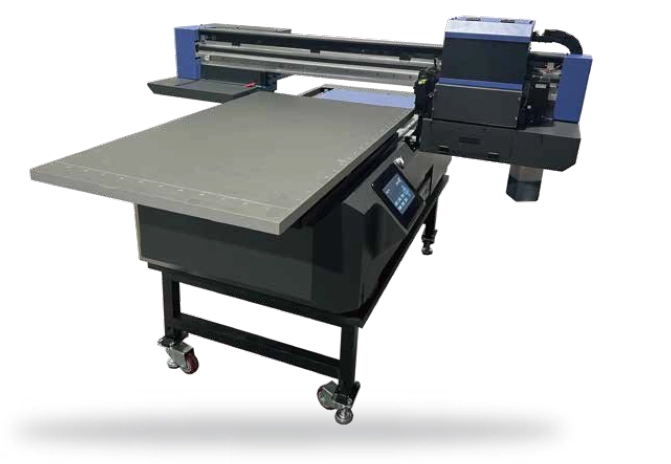

    Keundo Q6090UV 23.6 x 35.4" UV Flatbed









    High precision vacuum flatbed made of aluminum alloy with a turbofan installed below fixes the media firmly in place.







    The beam can raise up to 7" (180mm) to allow for printing on thicker materials

    Epson i1600-U1 Print Head

    Precision Core Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density

    Contributes to compact, high speed, high quality, and high image quality. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.







    The optional rotary feature allows 360 ° printing on cylindrical objects up to 7" (180mm)  in height.

    Technical Specifications

    Printing Technology

    Three  i1600-U1 Print Heads

    Print head technology

    Piezoelectric

    Printing Width

    23.6”x 35.4”  (600 x 900 mm)

                                      Width

    Acceptable media

                                     Thickness



    23.6" (600 mm)



    7" (180mm)

                             Capacity

    Ink cartridges                                                         Color

    .

    Color siphon plus regular mixing of white ink



    W + CMYK + Varnish

    Printing Resolution

    Maximum DPI 2400 DPI

    Speed

    (720 x 900 DPI)  Finished printing area and (A2)  16.5”x23.4”  sheet in 10 minutes

    Ink curing method

    Dual UV LED lights

    Power

    1300 watts

    Interface

    Gigabyte Ethernet

    Power supply

    AC 220 Volt ±5 percent 11A 60 Hertz

    Dimensions With Stand

    67” W  x  63” D  x 40.25” H

    1770 mm W x 1600 mm D x 1020 mm

    Weight With Stand

    662 Pounds (300 Kilograms)

                                  Power On



    Environment

                                   Power Off

    Temperature 59.7 Celsius to 90 Fahrenheit bracket 15-C to 32C bracket humidity 35 to 80% no condensation



    Temperature 41 Fahrenheit to 104 Fahrenheit 5C to 40C humidity 20 to 80% no condensation
